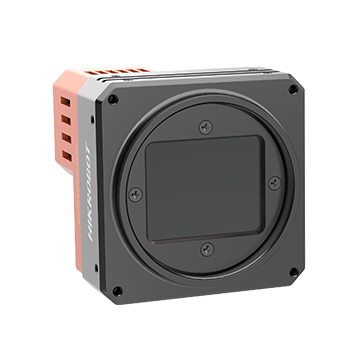

Hikrobot MV-CH1010-10CM-M72-NF Area Scan Camera
Hikrobot CH Area Scan Camera kategorisine ait ürünümüzün özellikleri:
- Otomatik veya manuel kazanç ve pozlama süresi ayarlamasını ve manuel LUT ve Gama düzeltmesini destekler.
- FFC düzeltme fonksiyonunu destekler.
- Farklı çalışma sıcaklığı gereksinimlerini karşılamak için fan veya TEC ile donatılmış kamera sağlar.
- Yüksek yakalama doğruluğu ve geniş dinamik aralık ile 16 bit ADC çıkışını destekler.
- Camera Link arayüzü üzerinden Temel, Orta, Tam ve 80 bit yapılandırma modlarını destekler.
- Camera Link V2.0 Protokolü, GenlCam Standardı ve GenICam Protokolüne uygun kare yakalama yazılımlarıyla uyumludur.
Ürün Özellikleri
Seriler
Ölçüler
Software
| Model | Product Model | MV-CH1010-10CM-M72-NF |
| Type | 101MP Area Scan Camera, Camera Link, IMX461, Mono, M72-mount, with fan | |
| Performance | Sensor type | CMOS, rolling shutter |
| Sensor model | Sony® IMX461 | |
| Pixel size | 3.76 μm × 3.76 μm | |
| Sensor size | 55 mm | |
| Resolution | 11648 × 8740 | |
| Max. frame rate | 8.1 fps @ 11648 × 8740 Mono 8 | |
| Configuration mode | Base, Medium, Full, 80-bit | |
| Tap geometry | 2X_1Y, 4X_1Y, 8X_1Y, 10X_1Y | |
| Tap number | 2 Taps, 4 Taps, 8 Taps, 10 Taps | |
| Pixel clock | 40 MHz, 60 MHz, 70 MHz, 85 MHz | |
| Dynamic range | 78 dB | |
| SNR | 45 dB | |
| Gain | 0 dB to 36 dB | |
| Exposure time | 14 μs to 10 sec | |
| Exposure mode | Off/Once/Continuous exposure mode, supports Global Reset | |
| Mono/color | Mono | |
| Pixel format | ADC 12-bit mode: Mono 8/10/12 ADC 16-bit mode: Mono 8/10/12/16 | |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Reverse image | Supports horizontal reverse image output | |
| Electrical feature | Data interface | Camera Link with SDR interface |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1. Camera Link interface provides I/O (CC1/CC2/CC3/CC4) | |
| Power supply | Camera with fan: 12 VDC to 24 VDC; Camera with TEC: 24 VDC | |
| Power consumption | Typ. 14 W @ 24 VDC | |
| Mechanical | Lens mount | M72*0.75, flange back length 19.55 mm |

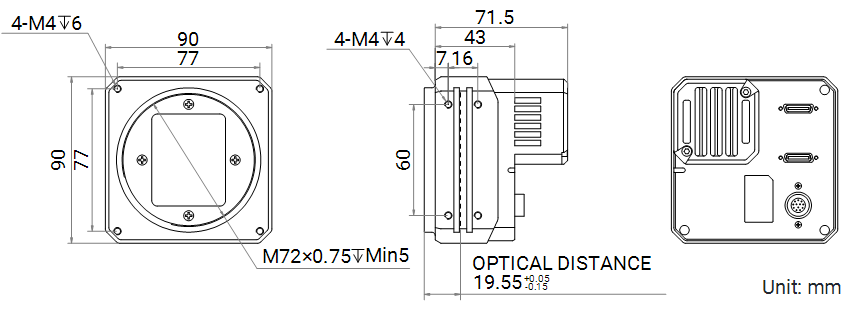

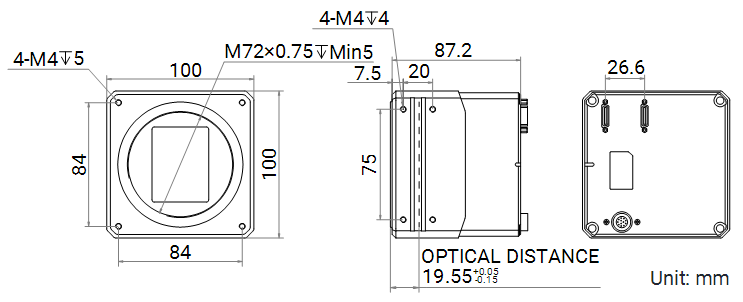

| Dimension | Camera with fan: 90 mm × 90 mm × 71.5 mm (3.5″ × 3.5″ × 2.8″) Camera with TEC: 100 mm × 100 mm × 87.2 mm (3.9″ × 3.9″ × 3.4″) | |
| Weight | Camera with fan: Approx. 790 g (1.7 lb.) Camera with TEC: Approx. 1.7 kg (3.7 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F) | |
| Humidity | 20% RH to 95% RH (no condensation) | |
| General | Client software | MVS or frame grabber software meeting with GenlCam Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11 | |
| Compatibility | Camera Link V2.0, GenlCam | |
| Certification | CE, RoHS, KC |
