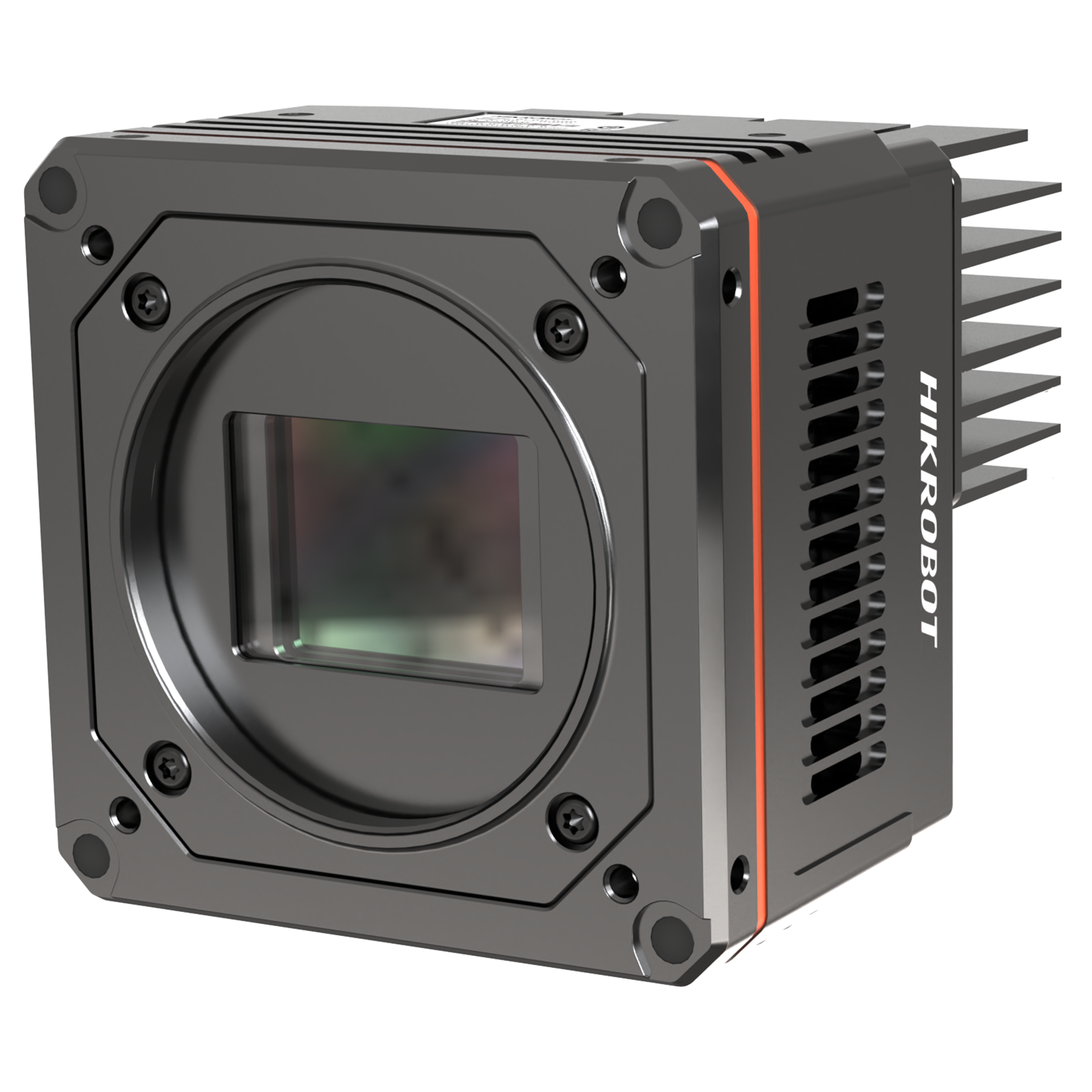

Hikrobot MV-CH250-20XM-M58S-NN Area Scan Camera - Ürün Görseli

Hikrobot CH Area Scan Camera

Hikrobot MV-CH250-20XM-M58S-NN Area Scan Camera

Hikrobot CH Area Scan Camera kategorisine ait ürünümüzün özellikleri:

5120 × 5120 çözünürlük ve 4,5 µm × 4,5 µm piksel boyutu.
Birleştirme, ters görüntü vb. özelliklerini destekler.
Yüksek dinamik aralık, sinyal-gürültü oranı ve yüksek kaliteli görüntüler sağlamak için global deklanşörlü CMOS sensör kullanır.
Veri iletimi için CXP-6 arayüzünü kullanır.
CoaXPress Protokolü ve GenlCam Standardı ile uyumludur.

Katalog PDF İndir

Kullanım Kılavuzu PDF İndir

Kullanım Kılavuzu

Ürün Özellikleri

Seriler

Ölçüler

Software

Model	Product Model	MV-CH250-20XM-M58S-NN
Model	Type	25MP Area Scan Camera, PYTHON25k, 4-link CXP-6, Mono, M58-mount, fanless
Performance	Sensor type	CMOS, global shutter
	Sensor model	OnSemi PYTHON25K
	Pixel size	4.5 μm × 4.5 μm
	Sensor size	23 mm × 23 mm
	Resolution	5120 × 5120
	Max. frame rate	80 fps @ 5120 × 5120
	Dynamic range	58 dB
	SNR	41 dB
	Gain	0 dB to 15 dB
	Exposure time	33 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/12
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	CoaXPress with DIN interface
	Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
	Power supply	9 VDC to 24 VDC, CXP-0 and CXP-1 connectors support PoCXP
	Power consumption	Typ. 10.8 W @ 24 VDC
Mechanical	Lens mount	M58*0.75, flange back length 11.48 mm
	Dimension	84 mm × 84 mm × 92.5 mm (3.3″ × 3.3″ × 3.6″)
	Weight	Approx. 730 g (1.6 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Humidity	20% RH to 95% RH (no condensation)
General	Client software	MVS or frame grabber software meeting with CoaXPress Protocol
	Operating system	32/64-bit Windows 7/10, 64-bit Windows 11
	Compatibility	CoaXPress, GenlCam
	Certification	CE, RoHS, KC
