Hikrobot MV-CH500-90TM-F-NF Area Scan Camera
Hikrobot CH Area Scan Camera kategorisine ait ürünümüzün özellikleri:
- 7008 × 7000 çözünürlük, 3,2 μm × 3,2 μm piksel boyutu.
- Kazanç, pozlama süresi ve gama düzeltmesi, LUT vb. ayarlarının otomatik veya manuel olarak yapılmasını destekler.
- 10 GigE arayüzünü benimser, GigE ile uyumludur ve maksimum 100 metre iletim mesafesine sahiptir.
- Esnek montaj için panellerde montaj delikleri bulunan kompakt tasarım.
- GigE Vision V2.0 Protokolü, GenlCam Standardı ve protokol ve standarda dayalı üçüncü taraf yazılımlarla uyumludur.
Ürün Özellikleri
Seriler
Ölçüler
Software
| Model | Product Model | MV-CH500-90TM-F-NF |
| Type | 50MP Area Scan Camera, 10GigE, GMAX, Mono, F-mount, with fan | |
| Performance | Sensor type | CMOS, global shutter |
| Sensor model | Gpixel® GMAX | |
| Pixel size | 3.2 μm × 3.2 μm | |
| Sensor size | 22.4 mm × 22.4 mm | |
| Resolution | 7008 × 7000 | |
| Max. frame rate | 15.5 fps @ 7008 × 7000 Mono 8 | |
| Dynamic range | 66 dB | |
| SNR | 40 dB | |
| Gain | 1.25 × to 6 × | |
| Exposure time | 15 μs to 10 sec | |
| Exposure mode | Off/Once/Continuous exposure mode | |
| Mono/color | Mono | |
| Pixel format | Mono 8/10/10Packed/12/12Packed | |
| Binning | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Decimation | Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4 | |
| Reverse image | Supports horizontal and vertical reverse image output | |
| Electrical feature | Data interface | 10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) |
| Digital I/O | 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1 | |
| Power supply | 9 VDC to 24 VDC | |
| Power consumption | Typ. 11 W @ 12 VDC | |
| Mechanical | Lens mount | F-mount, flange back length 46.5 mm |

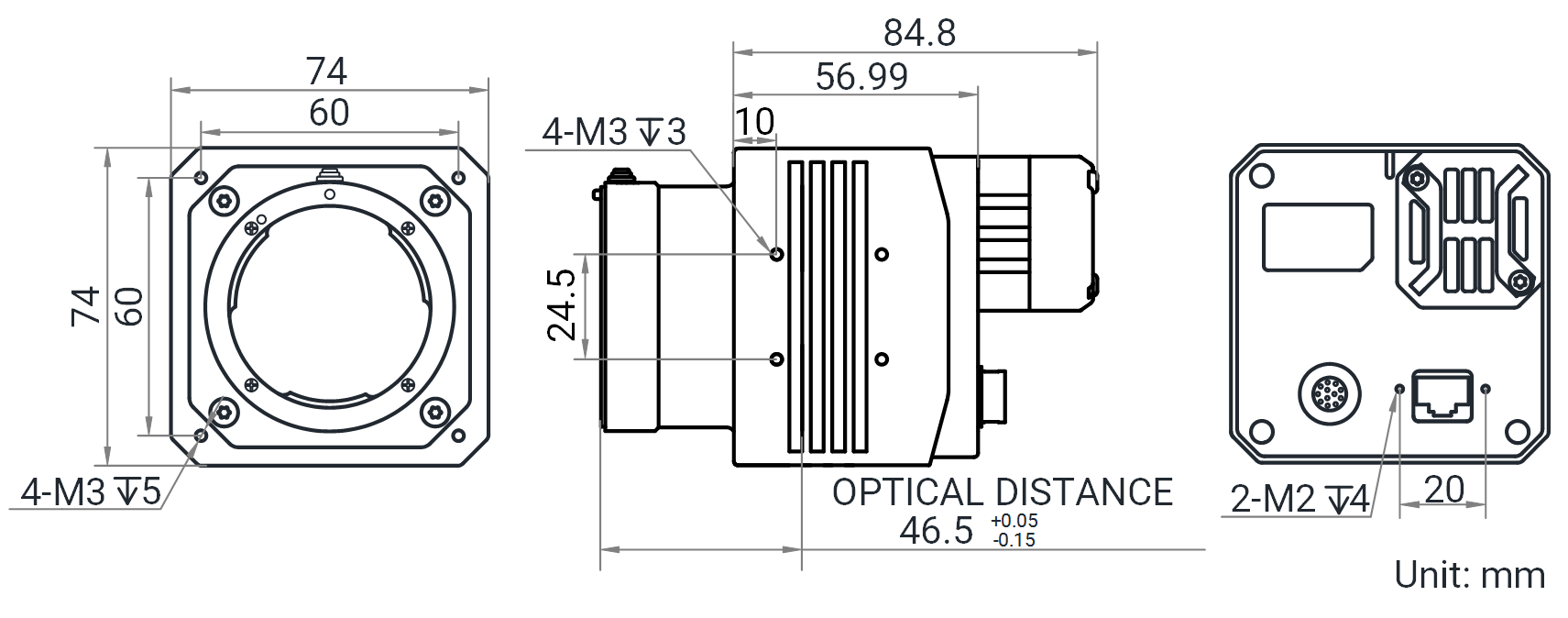

| Dimension | 74 mm × 74 mm × 84.8 mm (2.9″ × 2.9″ × 3.3″) | |
| Weight | Approx. 600 g (1.3 lb.) | |
| Ingress protection | IP40 (under proper lens installation and wiring) | |
| Temperature | Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F) | |
| Humidity | 20% RH to 95% RH (no condensation) | |
| General | Client software | MVS or third-party software meeting with GigE Vision Protocol |
| Operating system | 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux | |
| Compatibility | GigE Vision V2.0, GenICam | |
| Certification | CE, RoHS, KC |
