Hikrobot MV-CH120-90Y1C-NN Area Scan Camera

Hikrobot MV-CH120-90Y1C-NN Area Scan Camera - Ürün Görseli

Hikrobot CH Area Scan Camera

Hikrobot MV-CH120-90Y1C-NN Area Scan Camera

Hikrobot CH Area Scan Camera kategorisine ait ürünümüzün özellikleri:

4096 × 3072 çözünürlük, 3,4 µm × 3,4 µm piksel boyutu.
Yüksek dinamik aralık, sinyal-gürültü oranı ve yüksek kaliteli görüntü sağlamak için global deklanşörlü CMOS sensör kullanılmıştır.
Veri iletimi için CXP-12 arayüzü kullanılmıştır.
Kapalı, Tek Seferlik ve Sürekli pozlama modlarını destekler.
CoaXPress Protokolü, GenlCam Standardı ve protokol ve standarda dayalı üçüncü taraf yazılımlarla uyumludur.

Katalog PDF İndir

Kullanım Kılavuzu PDF İndir

Kullanım Kılavuzu

Ürün Özellikleri

Seriler

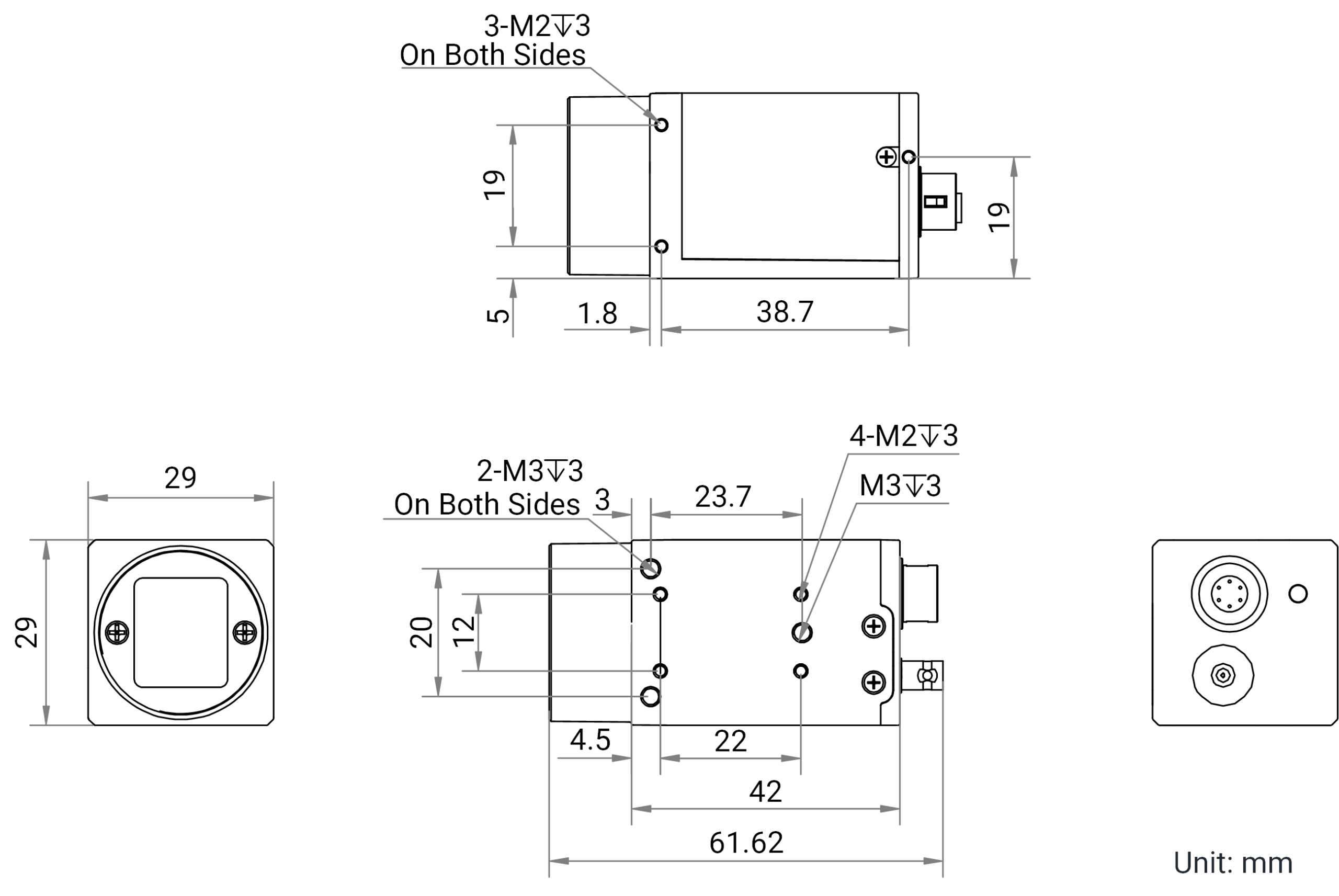

Ölçüler

Software

Model	Product Model	MV-CH120-90Y1C-NN
Model	Type	12MP Area Scan Camera, GMAX3412, 1-link CXP-12, C-mount, without fan, without heat sink, Color
Performance	Sensor type	CMOS, global shutter
	Sensor model	Gpixel GMAX3412
	Pixel size	3.4 μm × 3.4 μm
	Sensor size	1.1″
	Resolution	4096 × 3072
	Max. frame rate	93.9 fps @ 4096 × 3072 Bayer GB 8
	Dynamic range	59.7 dB
	SNR	39 dB
	Gain	0 dB to 6.1 dB
	Exposure time	6 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Color
	Pixel format	Bayer GB 8/10/12
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	CoaXPress with Micro-BNC interface
	Digital I/O	6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2)
	Power supply	12 VDC to 24 VDC, supports PoCXP
	Power consumption	Typ. 5 W @ 12 VDC
Mechanical	Lens mount	C-mount
	Dimension	Device with heat sink: 29 mm × 85 mm × 42 mm (1.1″ × 3.3″ × 1.7″) Device without heat sink: 29 mm × 29 mm × 42 mm (1.1″ × 1.1″ × 1.7″)
	Weight	Device with heat sink: Approx. 170 g (0.4 lb.) Device without heat sink: Approx. 90 g (0.2 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature for device with heat sink: 0 °C to 50 °C (32 °F to 122 °F) Working temperature for device without heat sink: 0 °C to 40 °C (32 °F to 104 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
	Humidity	20% RH to 95% RH (no condensation)
General	Client software	MVS or third-party software meeting with CoaXPress Protocol
	Operating system	32/64-bit Windows 7/10, 64-bit Window 11, and 32/64-bit Linux
	Compatibility	CoaXPress, GenlCam
	Certification	CE, RoHS, KC
