Hikrobot MV-CH1030-90TM-M58S-NN Area Scan Camera

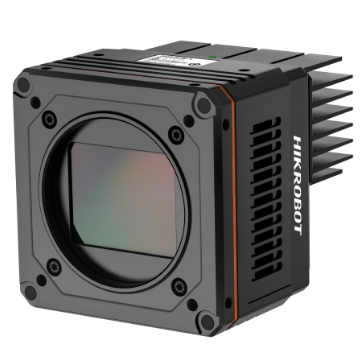

Hikrobot MV-CH1030-90TM-M58S-NN Area Scan Camera - Ürün Görseli

Hikrobot CH Area Scan Camera

Hikrobot MV-CH1030-90TM-M58S-NN Area Scan Camera

Hikrobot CH Area Scan Camera kategorisine ait ürünümüzün özellikleri:

11276 × 9200 çözünürlük, 3,2 μm × 3,2 μm piksel boyutu.
Pozlama süresi ve beyaz dengesinin otomatik veya manuel olarak ayarlanmasını, ayrıca kazanç, gama düzeltmesi, LUT vb. ayarlarının manuel olarak yapılmasını destekler.
Röle gerektirmeden maksimum 100 metre iletim mesafesi sağlayan 10 GigE arayüzünü kullanır.
Esnek kurulum için montaj deliklerine sahiptir.
GigE Vision Protokolü V2.0, GenlCam Standardı ve protokollere dayalı üçüncü taraf yazılımlarla uyumludur.

PDF İndir

Katalog PDF İndir

Kullanım Kılavuzu PDF İndir

Kullanım Kılavuzu

Ürün Özellikleri

Seriler

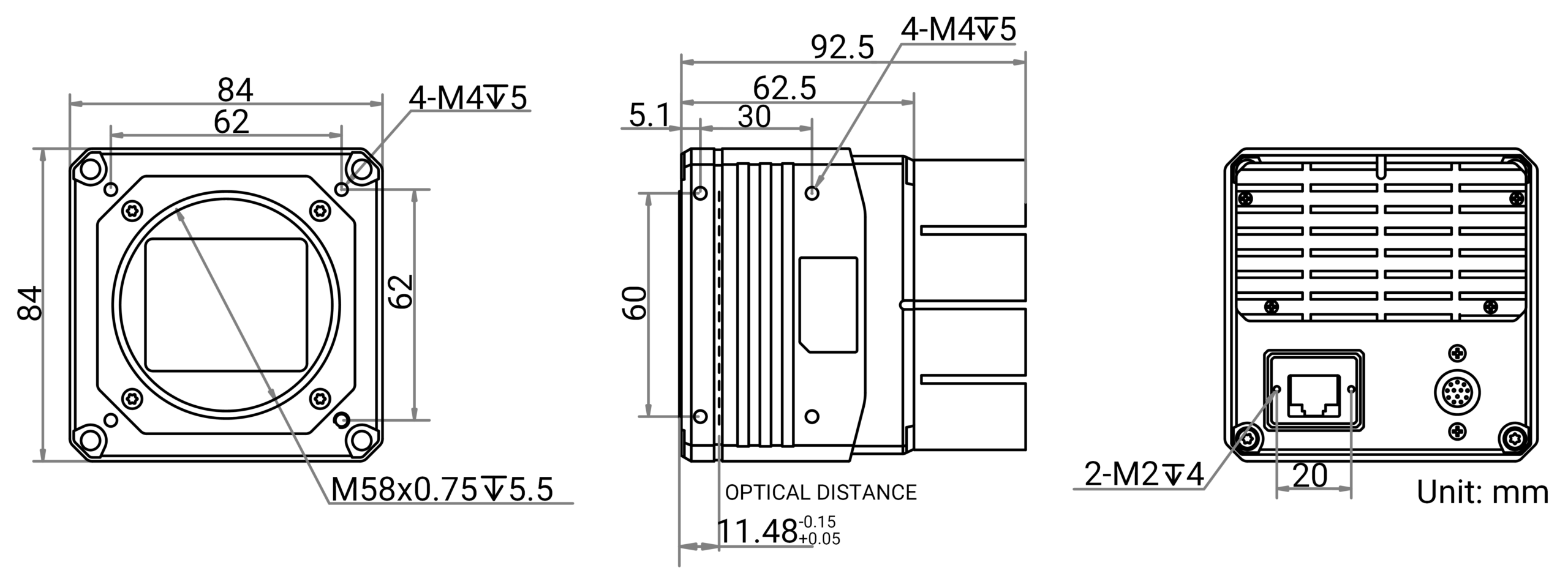

Ölçüler

Software

Model	Product Model	MV-CH1030-90TM-M58S-NN
Model	Type	103MP Area Scan Camera, 10GigE, GMAX32103, Mono
Performance	Sensor type	CMOS, global shutter
	Sensor model	Gpixel GMAX32103
	Pixel size	3.2 μm × 3.2 μm
	Sensor size	46.6 mm
	Resolution	11264 × 9200
	Max. frame rate	11 fps @ 11264 × 9200 Mono 8
	Dynamic range	64.86 dB
	SNR	39.88 dB
	Gain	1.4 × to 5.2 ×
	Exposure time	20 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/10Packed/12/12Packed
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	10 Gigabit Ethernet (10000 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s)
	Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1
	Power supply	12 VDC to 24 VDC
	Power consumption	Typ. 12.6 W @ 12 VDC
Mechanical	Lens mount	M58*0.75, flange back length 11.48 mm
	Dimension	84 mm × 84 mm × 92.5 mm (3.3″ × 3.3″ × 3.6″)
	Weight	738 g (1.6 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
	Humidity	20% RH to 95% RH (no condensation)
General	Client software	MVS or third-party software meeting with GigE Vision Protocol
	Operating system	32/64-bit Windows XP/7/10, 64-bit Windows 11, and 32/64-bit Linux
	Compatibility	GigE Vision V2.0, GenICam
	Certification	CE, RoHS, KC
