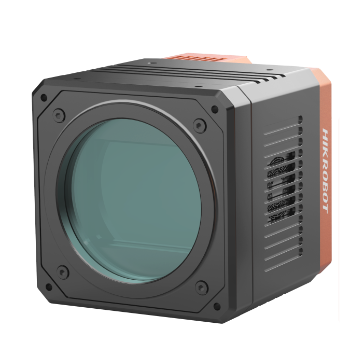

Hikrobot MV-CH6040-10XM-M72-NF Area Scan Camera - Ürün Görseli

Ürünler

HİKROBOT OPS-AK6005L Color Smart Camera - Ürün GörseliHİKROBOT OPS-AK6005L Color Smart CameraHikrobot OPS-SCO3000 Serisi Görüntü Sensörü - Ürün GörseliHikrobot OPS-SCO3000 Serisi Görüntü SensörüHikrobot CA Area Scan Camera - Ürün GörseliHikrobot CA Area Scan CameraHikrobot CE Area Scan Camera - Ürün GörseliHikrobot CE Area Scan CameraHikrobot CI Area Scan Camera - Ürün GörseliHikrobot CI Area Scan CameraHikrobot CH Area Scan Camera - Ürün GörseliHikrobot CH Area Scan CameraHikrobot CU Area Scan Camera - Ürün GörseliHikrobot CU Area Scan CameraHikrobot CS Area Scan Camera - Ürün GörseliHikrobot CS Area Scan CameraHikrobot CT Area Scan Camera - Ürün GörseliHikrobot CT Area Scan CameraHikrobot SC5000X Serisi Görüntü Sensörü - Ürün GörseliHikrobot SC5000X Serisi Görüntü SensörüHikrobot SC6000 Serisi Görüntü Sensörü - Ürün GörseliHikrobot SC6000 Serisi Görüntü SensörüHikrobot SC1000 Serisi Görüntü Sensörü - Ürün GörseliHikrobot SC1000 Serisi Görüntü SensörüHikrobot SC2000 Serisi Görüntü Sensörü - Ürün GörseliHikrobot SC2000 Serisi Görüntü SensörüHikrobot SC3000 Serisi Görüntü Sensörü - Ürün GörseliHikrobot SC3000 Serisi Görüntü Sensörü

Serinin Diğer Ürünleri

Hikrobot MV-CH6040-10XM-M72-NF Area Scan CameraHikrobot MV-CH1510-10FM-M72-TF Area Scan CameraHikrobot MV-CH1030-90TC-M58S-NN Area Scan CameraHikrobot MV-CH1030-90TM-M58S-NN Area Scan CameraHikrobot MV-CH1010-10CM-M72-TF Area Scan Camera +104 ürün daha

Hikrobot CH Area Scan Camera

Hikrobot MV-CH6040-10XM-M72-NF Area Scan Camera

Hikrobot CH Area Scan Camera kategorisine ait ürünümüzün özellikleri:

  • 28416 × 21280 çözünürlük, 3,76 µm × 3,76 µm piksel boyutu.
  • Görüntü kalitesini iyileştirmek için ISP algoritması kullanılmıştır.
  • Yüksek dinamik aralık sağlamak için rolling shutter CMOS sensör kullanılmıştır.
  • FFC düzeltmesi, LSC düzeltmesi ve 16 bit ADC çıkışını destekler. Veri iletimi için CXP-6 arayüzü kullanılmıştır.
  • CoaXPress Protokolü ve GenlCam Standardı ile ve protokol ve standarda dayalı üçüncü taraf yazılımlarla uyumludur.

PDF İndir 3D Çizimler Katalog PDF İndir Katalog Kullanım Kılavuzu PDF İndir Kullanım Kılavuzu
Ürün Özellikleri
Seriler

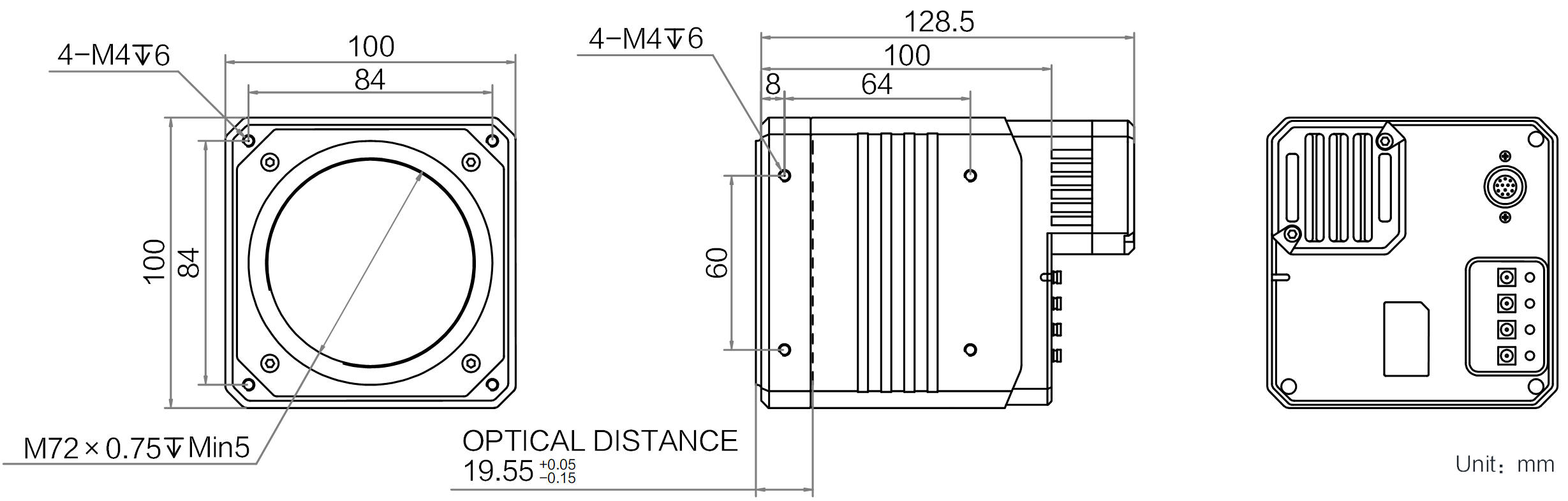

Ölçüler
Software
ModelProduct ModelMV-CH6040-10XM-M72-NF
Type604MP Area Scan Camera, CXP-6, Mono
PerformanceSensor typeCMOS, rolling shutter
Sensor modelSony® IMX411
Pixel size3.76 μm × 3.76 μm
Sensor size66.7 mm
Resolution28416 × 21280
Max. frame rate1.45 fps @ 28416 × 21280 Mono 8
Dynamic range78.7 dB
SNR46.4 dB
Gain0 dB to 40 dB
Exposure time15 μs to 1 sec (604 MP)
Exposure modeOff/Once/Continuous exposure mode, supports Rolling and Global Reset
Mono/colorMono
Pixel formatMono 8/10/12/16
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationNot support
Reverse imageSupports horizontal reverse image output
Electrical featureData interfaceCoaXPress with DIN interface
Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1
Power supply24 VDC
Power consumptionTyp. 15 W @ 24 VDC
MechanicalLens mountM72*0.75, back focal length 19.55 mm
Dimension100 mm × 100 mm × 128.5 mm (3.9″ × 3.9″ × 5.1″)
WeightApprox. 1.4 kg (3.1 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperaturePerformance temperature: 20 °C to 35 °C (68 °F to 95 °F) Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
GeneralClient softwareFrame grabber software meeting with CoaXPress Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11 with 16 GB memory or above
CompatibilityCoaXPress, GenlCam
CertificationCE, RoHS, KC
