Hikrobot MV-CH250-90YM-C-NN Area Scan Camera

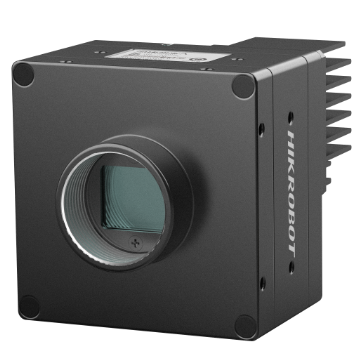

Hikrobot MV-CH250-90YM-C-NN Area Scan Camera - Ürün Görseli

Hikrobot CH Area Scan Camera

Hikrobot MV-CH250-90YM-C-NN Area Scan Camera

Hikrobot CH Area Scan Camera kategorisine ait ürünümüzün özellikleri:

5120 × 5120 çözünürlük, 2,5 µm × 2,5 µm piksel boyutu.
Yüksek dinamik aralık ve yüksek kaliteli görüntü sağlamak için global deklanşörlü CMOS sensör kullanılmıştır.
Veri iletimi için CXP-12 arayüzü kullanılmıştır.
CoaXPress Protokolü, GenlCam Standardı ve protokol ve standarda dayalı üçüncü taraf yazılımlarla uyumludur.

Katalog PDF İndir

Kullanım Kılavuzu PDF İndir

Kullanım Kılavuzu

Ürün Özellikleri

Seriler

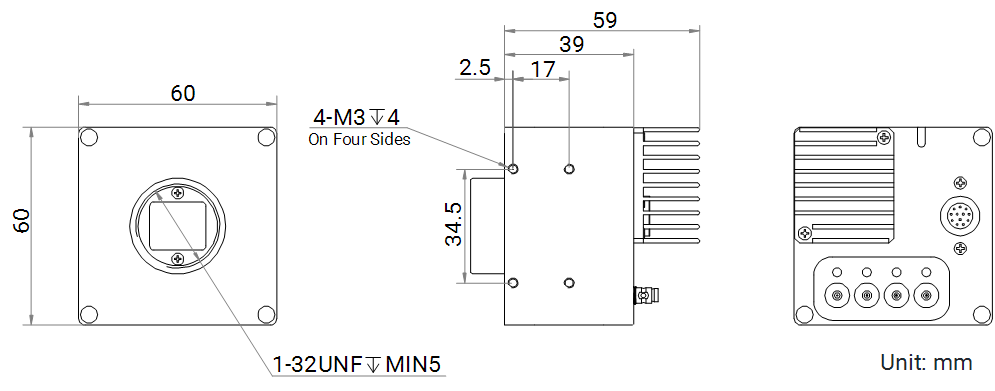

Ölçüler

Software

Model	Product Model	MV-CH250-90YM-C-NN
Model	Type	25MP Area Scan Camera, CXP-12, GMAX0505, Mono, V2, C-mount
Performance	Sensor type	CMOS, global shutter
	Sensor model	Gpixel GMAX0505
	Pixel size	2.5 μm × 2.5 μm
	Sensor size	1.1″
	Resolution	5120 × 5120
	Max. frame rate	150 fps @ 5120 × 5120 Mono 8
	Dynamic range	63 dB
	SNR	36 dB
	Gain	2.5 ×
	Exposure time	UltraShort exposure mode: 3 μs to 8 μs Standard exposure mode: 10 μs to 10 sec
	Exposure mode	Off/Once/Continuous exposure mode
	Mono/color	Mono
	Pixel format	Mono 8/10/12
	Binning	Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Decimation	Supports 1 × 1, 1 × 2, 1 × 4, 2 ×1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
	Reverse image	Supports horizontal and vertical reverse image output
Electrical feature	Data interface	CoaXPress with micro-BNC interface
	Digital I/O	12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
	Power supply	12 VDC to 24 VDC, CXP-0 and CXP-1 support PoCXP
	Power consumption	Typ. 9.9 W @ 12 VDC
Mechanical	Lens mount	C-mount, flange focal length 17.52 mm M58*0.75, flange focal length 11.48 mm
	Dimension	60 mm × 60 mm × 59 mm (2.4″ × 2.4″ × 2.3″) (cooling fins are optional)
	Weight	C-mount without fan, approx. 280 g (0.6 lb.) M58-mount without fan, approx. 285 g (0.6 lb.)
	Ingress protection	IP40 (under proper lens installation and wiring)
	Temperature	Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
	Humidity	20% RH to 95% RH, no condensation
General	Client software	MVS or third-party software meeting with CoaXPress Protocol
	Operating system	32/64-bit Windows XP/7/10/11, 32/64-bit Linux
	Compatibility	CoaXPress, GenlCam
	Certification	CE, RoHS, KC, UL
