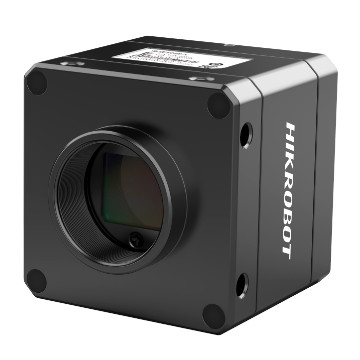

Hikrobot MV-CH250-90XC-C-NN Area Scan Camera - Ürün Görseli

Ürünler

HİKROBOT OPS-AK6005L Color Smart Camera - Ürün GörseliHİKROBOT OPS-AK6005L Color Smart Camera Hikrobot OPS-SCO3000 Serisi Görüntü Sensörü - Ürün GörseliHikrobot OPS-SCO3000 Serisi Görüntü Sensörü Hikrobot CA Area Scan Camera - Ürün GörseliHikrobot CA Area Scan Camera Hikrobot CE Area Scan Camera - Ürün GörseliHikrobot CE Area Scan Camera Hikrobot CI Area Scan Camera - Ürün GörseliHikrobot CI Area Scan Camera Hikrobot CH Area Scan Camera - Ürün GörseliHikrobot CH Area Scan Camera Hikrobot CU Area Scan Camera - Ürün GörseliHikrobot CU Area Scan Camera Hikrobot CS Area Scan Camera - Ürün GörseliHikrobot CS Area Scan Camera Hikrobot CT Area Scan Camera - Ürün GörseliHikrobot CT Area Scan Camera Hikrobot SC5000X Serisi Görüntü Sensörü - Ürün GörseliHikrobot SC5000X Serisi Görüntü Sensörü Hikrobot SC6000 Serisi Görüntü Sensörü - Ürün GörseliHikrobot SC6000 Serisi Görüntü Sensörü Hikrobot SC1000 Serisi Görüntü Sensörü - Ürün GörseliHikrobot SC1000 Serisi Görüntü Sensörü Hikrobot SC2000 Serisi Görüntü Sensörü - Ürün GörseliHikrobot SC2000 Serisi Görüntü Sensörü Hikrobot SC3000 Serisi Görüntü Sensörü - Ürün GörseliHikrobot SC3000 Serisi Görüntü Sensörü

Serinin Diğer Ürünleri

Hikrobot MV-CH6040-10XM-M72-NF Area Scan Camera Hikrobot MV-CH1510-10FM-M72-TF Area Scan Camera Hikrobot MV-CH1030-90TC-M58S-NN Area Scan Camera Hikrobot MV-CH1030-90TM-M58S-NN Area Scan Camera Hikrobot MV-CH1010-10CM-M72-TF Area Scan Camera +104 ürün daha

Hikrobot CH Area Scan Camera

Hikrobot MV-CH250-90XC-C-NN Area Scan Camera

Hikrobot CH Area Scan Camera kategorisine ait ürünümüzün özellikleri:

  • 5120 × 5120 çözünürlük, 2,5 µm × 2,5 µm piksel boyutu.
  • Yüksek dinamik aralık, sinyal-gürültü oranı ve yüksek kaliteli görüntü sağlamak için global deklanşörlü CMOS sensör kullanılmıştır.
  • Veri iletimi için CXP-6 arayüzü kullanılmıştır.
  • CoaXPress Protokolü ve GenlCam Standardı ile uyumludur.

Katalog PDF İndir Katalog Kullanım Kılavuzu PDF İndir Kullanım Kılavuzu
Ürün Özellikleri
Seriler

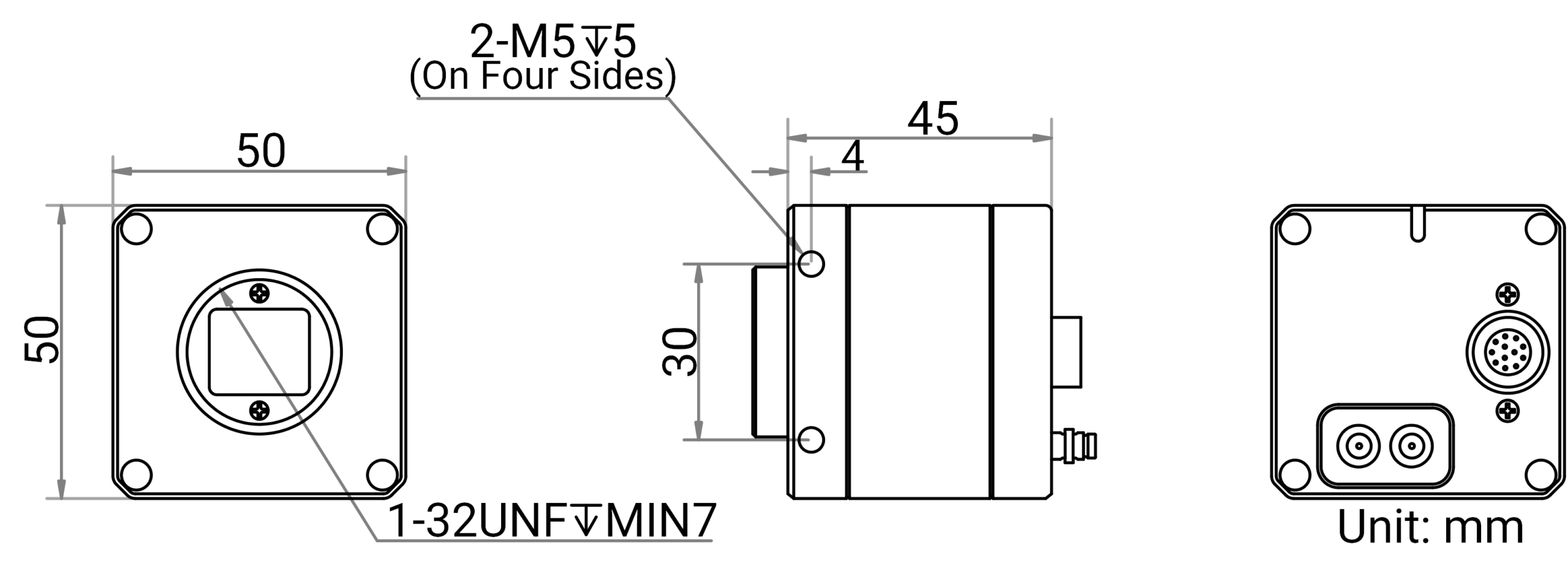

Ölçüler
Software
Model Product Model MV-CH250-90XC-C-NN
Type 25MP Area Scan Camera, GMAX0505, CXP-6, Color, C-mount, without fan
Performance Sensor type CMOS, global shutter
Sensor model Gpixel GMAX0505
Pixel size 2.5 μm × 2.5 μm
Sensor size 1.1″
Resolution 5120 × 5120
Max. frame rate 41.5 fps @ 5120 × 5120 Bayer BG 8
Dynamic range 65 dB
SNR 41 dB
Gain 2.0 × to 5.0 ×
Exposure time UltraShort exposure mode: 3 μs to 8 μs Standard exposure mode: 10 μs to 10 sec
Exposure mode Off/Once/Continuous exposure mode
Mono/color Color
Pixel format Bayer BG 8/10/12
Binning Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Decimation Supports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse image Supports horizontal and vertical reverse image output
Electrical feature Data interface CoaXPress with DIN interface
Digital I/O 12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Power supply 9 VDC to 24 VDC, CXP-1 supports PoCXP
Power consumption Typ. 6.5 W @ 12 VDC
Mechanical Lens mount C-mount
Dimension 50 mm × 50 mm × 45 mm (2.0″ × 2.0″ × 1.8″)
Weight Approx. 207 g (0.5 lb.)
Ingress protection IP40 (under proper lens installation and wiring)
Temperature Working temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity 20% RH to 95% RH (no condensation)
General Client software MVS or frame grabber software meeting with CoaXPress Protocol
Operating system 32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
Compatibility CoaXPress, GenlCam
Certification CE, RoHS, KC
